Chinese Suppliers of 250 kWh Battery Energy Storage Systems

A 250 kWh enquiry is unusually ambiguous, because that capacity sits at a point where three quite different product families overlap. The same figure can describe a grid-connected commercial system, an all-in-one solar self-consumption unit or a mobile system built to work alongside a generator set. Each carries a different power rating, cooling method and cycle life.

MPMC POWERTECH CORP. manufactures all three families as its HBD-A, HBD-E and HBD-R series. This article sets out how the capacity maps across them and what to settle before comparing suppliers.

MPMC HBD-A Series, HBD-125-260. 125 kW rated AC power, 261 kWh capacity, liquid cooling.

Three Products at Roughly the Same Capacity

Two entries share the same model designation across different series with different cycle ratings and cooling methods. That is a reminder to specify the series as well as the model when requesting a quotation.

Which Series Suits Which Application

HBD-A: stationary, grid-connected

Built for peak shaving, frequency regulation and larger commercial and industrial duty. MPMC lists LFP 314 Ah cells at 8,000 cycles at 90% depth of discharge, liquid cooling on all models, IP54 system protection and IP67 battery pack protection, with support for PQ, VF, VSG, black start and grid-forming modes.

This is the series to review where the system will cycle heavily for years at a fixed site.

HBD-E: small hybrid and self-consumption

Built for households, small farms, small commercial sites and off-grid use. MPMC describes it as an all-in-one unit combining inverter, PCS and EMS, listing CE and CEC (Australia) certification, IP54, an operating range of −25°C to +55°C, 150% overload for 10 seconds, 6,000 cycles at 90% depth of discharge and remote control via app or PC. The HBD-125-260 in this series is listed with a maximum PV input of 250 kWp.

This is the series to review where solar self-consumption is the main purpose and the installation is fixed and relatively simple.

HBD-R: mobile, rental, and generator sets partner

Built for the rental market and as a companion to diesel generator sets, with millisecond-level transient load smoothing. MPMC lists a ruggedised structure for repeated transport, forklift pockets and standard container footprints, PowerLock and CEE plug-and-play connections, remote monitoring via EMS with 4G or 5G, and compatibility with DSE, ComAp, DEIF, Woodward, Smartgen and CAT EMCP controllers.

This is the series to review where the system will move between sites or operate alongside generation.

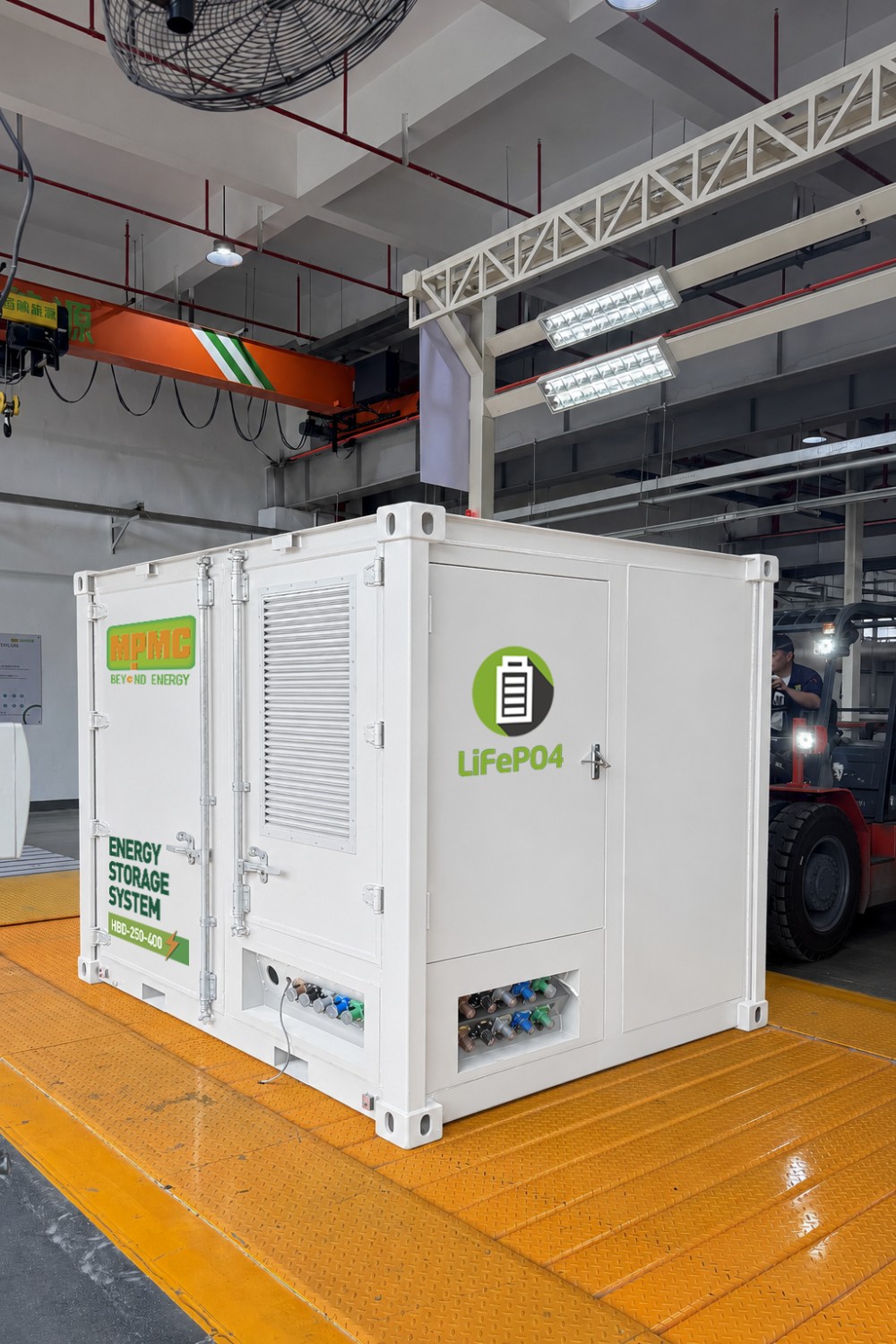

MPMC HBD-R Series, HBD-250-400. 250 kW continuous AC power, 450.2 kWh capacity, designed for rental duty and generator pairing.

Reading the Capacity Figure Correctly

Three adjustments turn nameplate capacity into deliverable energy, and quotations should be compared after they are applied.

Usable energy. Systems do not discharge to zero. The usable proportion should be stated rather than assumed.

Round-trip efficiency. Conversion losses reduce delivered energy relative to stored energy.

Temperature. MPMC states capacity at 25°C. Sites operating consistently outside that range should ask for the derated figure.

The power rating applies independently. A 261 kWh system rated at 125 kW cannot serve a 200 kW load regardless of its capacity, and no amount of stored energy changes that.

What to Verify in a Chinese Supplier

Cell specification. MPMC lists LiFePO₄ chemistry across all BESS series, with 100 Ah cells on small E-series models, 265 Ah on 1C R-series models and 314 Ah on standard A, E and R series models.

Manufacturing base. MPMC lists battery pack and BESS assembly lines at its Yangzhong facility in Jiangsu, described as a 19,000 m² workshop with a 3,300 m² research and development centre.

Cycle rating basis. A cycle figure without a depth of discharge is not comparable. MPMC states 8,000 cycles at 90% DOD for the A-series and 6,000 cycles at 90% DOD for the E and R series.

Certification for the destination. MPMC’s published product list includes CE, TUV, SGS, UN38.3 for battery transport, SABER, France BV, Russian Customs Union, Nigeria SONCAP, China TLC and UL. Which apply depends on the exact model and market.

Warranty structure. MPMC’s published terms list 5 years or 2.2 MWh/kWh total output for HBD-A systems with a 10-year or 4.3 MWh/kWh battery performance warranty, and 3 years or 1.6 MWh/kWh for HBD-R with a 5-year or 2.57 MWh/kWh battery performance warranty. End-of-life retention is listed at a minimum of 70%.

Note that MPMC’s HBD-A battery performance warranty validity is stated as conditional on maintaining battery box temperature at 0°C to 25°C and humidity at or below 80%.

Documented Deployments at Comparable Scale

Rewriting the Enquiry So Quotations Are Comparable

A 250 kWh enquiry returns incomparable quotations because it under-specifies. Compare the two versions below.

Before. “We require a 250 kWh battery energy storage system. Please quote.”

After. “We require a system delivering 120 kW continuous into a fixed industrial site, cycling approximately once daily, with the objective of demand charge reduction. Ambient reaches 38°C in summer. Please state rated AC power, nominal and usable capacity, round-trip efficiency, cycle rating with its depth of discharge, cooling method, and the derated capacity at 38°C.”

The second version cannot be answered with a catalogue page. It also makes clear which of MPMC’s three families applies: HBD-A for stationary grid-connected duty at 8,000 cycles with liquid cooling, HBD-E for solar self-consumption as an all-in-one unit, or HBD-R for mobile and generator-paired duty.

Remaining items to close: whether grid-forming, black start or off-grid operation is required, transport dimensions and weight if the unit will be relocated, applicable certificates for the exact model and market, and both warranty dimensions with any conditions attached. MPMC’s published HBD-A terms are 5 years or 2.2 MWh/kWh for the system and 10 years or 4.3 MWh/kWh for battery performance, with validity conditional on maintaining battery box temperature at 0°C to 25°C and humidity at or below 80%.

Why the Same Model Name Appears Twice

One detail in this capacity band causes recurring confusion and is worth stating plainly.

MPMC lists an HBD-125-260 in the HBD-A series at 261 kWh with 8,000 cycles and liquid cooling, and an HBD-125-260 in the HBD-E series at 261.2 kWh with 6,000 cycles and HVLC cooling. Same designation, different product, different intended application.

Always specify the series alongside the model when requesting a quotation, and check the series on the returned datasheet rather than assuming it from the model number. It is a small habit that prevents a large misunderstanding at delivery.
