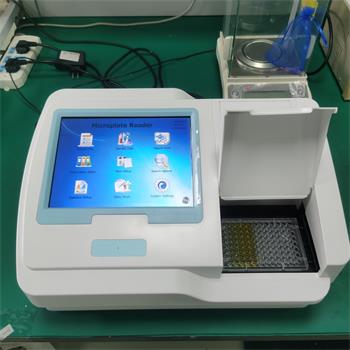

Main Features
* Windows system, WIFI function, Easy to transfer data between PC and device
*Touch screen with 10.4”color LED display, resolution 1024*600
* Large Intelligent operation interface, easy connect to PC
* Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
* 10 filter position and Incubator module can be customized,
* long-life(20000hours) LED light for fast reading and minimal maintenance costs.Incubation module optional.
* Comprehensive qualitative and quantitative data-evaluation functions with cut-offs,
curve-fits and transformation formulas
* More than 20 different report formats
* Auto Lamp adjustment and auto calibration
* Support keyboard and mouse with USB interfaces
* Stable memory stores up to twenty million test data, 500 test projectslisa Microplate Reader/elisa plate reader
Technical Specifications
|
Microplate types |
96/ 48 -well plate |
|
Photodetector |
Silicon Photodiode |
|
Light source |
halogen lamp or LED lmap |
|
Wavelength range |
400nm~800nm or 400-720nm |
|
Standard filters |
405,450,492,630nm & 4 optional |
|
Reading range |
0.000~4.000A |
|
Resolution |
0.001A |
|
Accuracy |
±0.008A |
|
Reproducibility |
≤0.2% |
|
Stability |
±0.003A |
|
Reading Speed |
Single Wavelength≤3s ;Double Wavelength≤6s |
|
Shaking |
Linear Shaking , 3 speeds |
|
Printer |
Built-in Thermal Printer,optional external printer |
|
Interface connections |
DVI,VGA,NETWORK INTERFACE,USB,AUDIO INTERFACE, RS-232 |
|
Power supply |
100~240V, 50~60Hz |
|
Dimensions |
460(L)×350(W)×197(H)mm |
|
Net weight |
8kg |
Since foundation in 2003,DIATEK is a professional manufacturer of elisa reader and washer, which integrating R&D, production, sales and service.
All our instruments has got ISO and CE proved.And widely used in hospitals,clinics, labs,Food safety and veterinary clinics.
With the support of strong and professional R&D team, various Customization are acceptable.
Professional R&D team keeps us always at the forefront of medical device industry,
After-sales team provide 7*24h timely and patient service,
Every material and product will be checked by QC, To ensure customer satisfaction.
We have built a strong busniess relationship with customers in more than 70 countries ,Asia,North and Latin America,Europe and Afrcia.
We value every customer and order, Would like to establish long-term win-win business cooperation with distributors all over the world.
