Introduction:

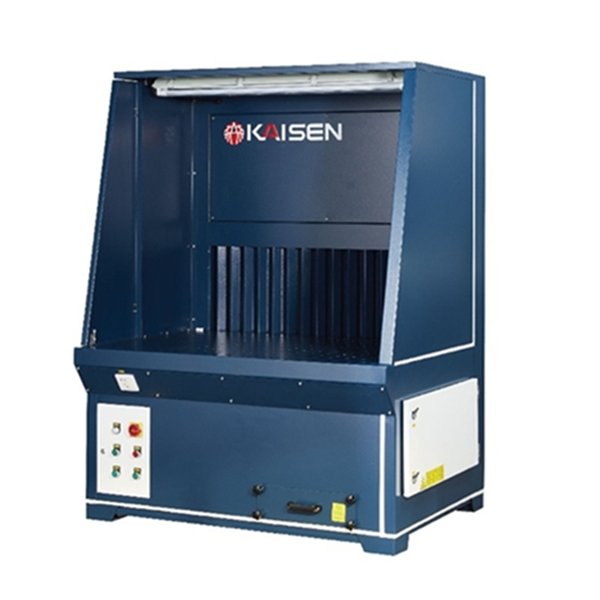

The downdraft grinding dust collector can realize the working mode of bottom suction to absorb and purify the dust generated during the polishing process. The front bottom suction is set according to the physical characteristics of the dust. The combination of top air supply and bottom suction can not only achieve the purpose of absorbing dust, but also bring fresh breathing air to the staff, thereby effectively protecting the working environment of the staff.
Parameters:
| Model | KSDM-4.0 |
| Inlet Air Flow | 4000±200m³/h |
| Motor Power | 4kW |
| Power Supply | 3x380V/50Hz |
| Filter Material |
Spunbond polyester |
| Filtration Area | 24㎡ |
| Filtration Efficiency | ＞99.9% |
| Filtration Precision | ≥0.3μm |
| Filter Cartridge | 2 Pcs |
| Cleaning Method |
Automatic cleaning |
| Compressed Air | 0.5~0.6MPa |
| Noise Level | ≤75±5 dB(A) |
| Dimension (WxDxH) | 1600×1150×1900mm |
| Working table (WxDxH) | 1515×1000×850mm |
| Weight | 650±15kg |
Options & Accessories：
Independent electric control cabinet
Frequency converter
Explosion proof device
Anti-static filter cartridge
Cellulose filter cartridge
Applications：

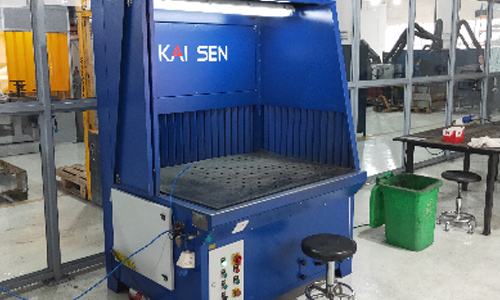

Downdraft grinding dust collector

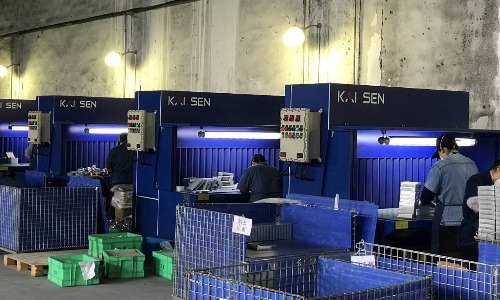

Customized grinding dust collector

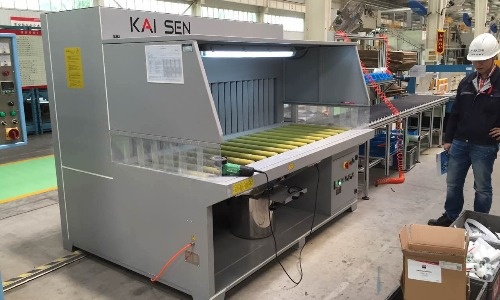

ATEX grinding dust collector case
