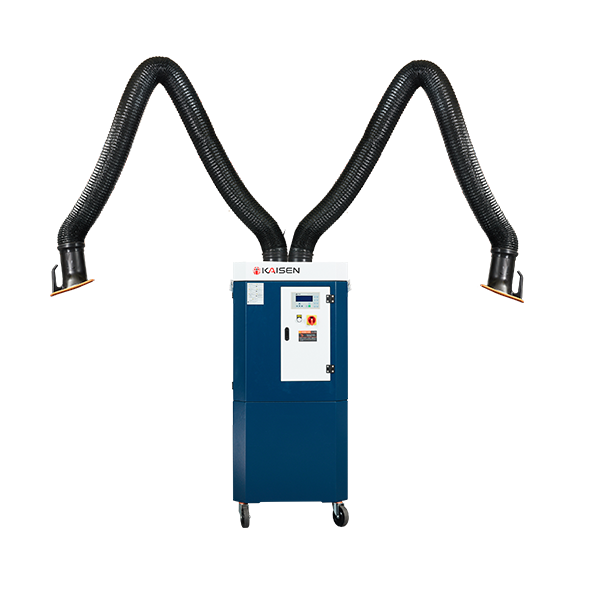

Introduction:
KSZ series multifunctional mobile fume extractors adopts intelligent PLC
system, displays real-time operating parameters, and can realize automatic
cleaning according to the monitoring of differential pressure sensor. Its freely
movable suction arms can be easily extended or rotated 360°, and its suction
hood is also simple to position above any welding workstation without any
external support, which allowing welders to position the hood wherever it’s
needed. Meanwhile, its temperature monitoring and integrated automatic fire
extinguish system make it safer to use.
Parameters:
|
Model |
KSZ-1.5S1/S2 |
|
Fan Air Flow |
3600 ± 100m³/h |
|
Inlet Air Flow |
2000m³/h |
|
Motor Power |
2.2kW |
|
Power Supply |
3×380V/50Hz |
|
Filter Material |
Polyester + PTFE |
|
Filtration Area |
10㎡ |
|
Filtration Efficiency |
≥99.9% |
|
Filtration Precision |
≥0.3μm |
|
Filter Cartridge |
1pc |
|
Cleaning Method |
Automatic |
|
Compressed Air |
0.5~0.6MPa |
|
Noise Level |
≤72 ± 5dB(A) |
|
Dimension (W×D×H) |
700×800×1600mm |
|
Weight |
215 ± 5kg |
Options & Accessories:
PLC Intelligent control system
Frequency converter
Remote switch
Explosion proof device
Anti-static filter cartridge
Application:
Welding fume Filtration, Welding fume Killer System
Robotic Welding Fume Extraction & Dust Extraction
Soldering and Fume Filtration
Laser Fume Filtration
Hazardous Fume / Dust Filtration / Odor Removal
Medical Lab Gas / Fume / Dust Filtration
Pharmacy lab Dust Filtration
Custom Made Ducting with Exhaust Systems
