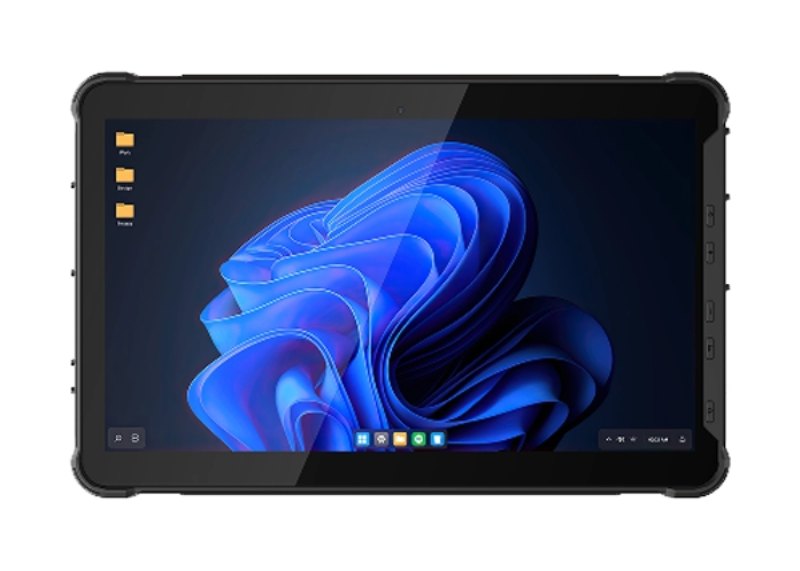

RT-12C 12-inch Windows10/11 Rugged Tablet

Product Introduction

The RT-12C 12-inch Windows10/11 Rugged Tablet is designed for demanding industrial, outdoor and mobile applications where computing performance, connectivity and reliable operation are important. It combines a high-performance Intel Core 12th Generation processor with a 12-inch high-resolution display, multi-touch operation, expandable storage and a wide range of communication and I/O interfaces.

With a rugged enclosure, wide operating temperature range, sunlight-visible display and optional 4G/5G, GPS, fingerprint, NFC, RFID and barcode scanning modules, the RT-12C can be configured for different professional applications. It supports Windows 10, Windows 11 and optional Ubuntu systems, providing flexibility for industrial software and customized deployment.

Key Product Features

Rugged Dual-Color Housing

The RT-12C uses a dual-color molded housing designed for demanding working environments. Its protective construction supports reliable operation in industrial and outdoor applications, while the machine color can also be customized according to project requirements.

Intel Core 12th Generation Performance

The tablet is equipped with Intel Core 12th Generation processors, with available I5-1235U and I7-1255U configurations. Combined with up to 2TB SSD storage, it provides the computing resources required for professional software, industrial applications and mobile data processing.

Long Battery Endurance

A built-in 7.6V 10000mAh polymer lithium-ion battery provides extended operating time. Under the specified test condition of 50% volume while playing 1080P local high-resolution video, battery life can reach approximately 10 hours.

Wide Temperature Operation

The RT-12C is designed for a wide temperature range, with an operating temperature of -25°C to 60°C and storage temperature of -30°C to 70°C. This makes it suitable for applications exposed to changing environmental conditions.

Windows and Ubuntu Support

The tablet supports Windows 10 and Windows 11, with Ubuntu available as an optional system. This allows integrators to select the operating environment according to application software and deployment requirements.

Multiple Wireless Communication Options

Wireless connectivity includes WiFi, Bluetooth, GPS and optional cellular communication. Optional 4G/5G modules can support connected field operations, while Bluetooth 5.3 and WiFi 6-compatible wireless networking provide flexible connectivity.

High-Resolution Sunlight-Visible Display

The 12-inch LCD screen features a 1200 × 2000 resolution and 500-nit standard brightness. The display is designed for clear viewing in bright environments and supports 10-point touch operation.

Precision Positioning and Identification

The tablet supports GPS and domestic BeiDou positioning modules. Optional fingerprint, NFC, RFID and scanner modules can also be integrated for identification, access control, data collection and professional field applications.

Technical Specifications

Specification	Details
Product Model	RT-12C
Processor	Intel Core 12th Generation I5-1235U / I7-1255U
Memory	16GB+
Storage	128GB–2TB SSD
Display	12-inch LCD
Resolution	1200 × 2000
Brightness	500 nit standard
Touch	10-point touch panel
Touch Hardness	7H
WiFi	802.11a/b/g/n/ac/ax
WiFi Frequency	2.4G / 5.8G / 6G
Bluetooth	Bluetooth 5.3 BLE Class 1
Bluetooth Distance	Up to 10m
Positioning	GPS / optional BeiDou
Front Camera	5.0MP
Rear Camera	8.0MP
Operating System	Windows 10 / Windows 11
Optional System	Ubuntu
Battery	Polymer lithium-ion, 7.6V / 10000mAh
Battery Life	Approx. 10 hours under specified test conditions
Operating Temperature	-25°C to 60°C
Storage Temperature	-30°C to 70°C
Humidity	95% non-condensing
Protective Rating	IP65 / IP67 stated configurations
Drop Resistance	1.2m drop resistant on composite wooden floor
Size	277(W) × 182(D) × 21.8(H)mm
Weight	1450g
Machine Color	Black / customized monochrome or dual color
Adapter	AC100V–240V, DC12V/4A
Certifications	CE, IP67, RoHS, UN38.3, EMC, 3C

I/O Interfaces

The RT-12C provides multiple wired interfaces for industrial equipment connection and data communication:

• 3.5mm standard audio interface ×1

• Micro HDMI ×1

• USB Type-A 3.0 ×1

• USB Type-C 3.0 ×1

• Gigabit Ethernet port ×1

• DB9 RS232 ×1

• DC power input ×1, 19V/3.5A

• 12-pin Pogo Pin ×1

• TF card slot ×1, supporting up to 2TB

• SIM card slot ×1

The combination of USB, Ethernet, RS232, HDMI and Pogo Pin interfaces makes the tablet suitable for integration with industrial peripherals, communication equipment and professional accessories.

Optional Communication and Expansion Modules

4G/5G Communication

An optional 4G/5G telecommunications module can be installed for mobile network connectivity. This is useful for field data transmission, remote management and mobile industrial operations.

Fingerprint Module

Optional fingerprint modules include customized public security fingerprint and FBI fingerprint configurations for applications requiring user identification or biometric authentication.

NFC, HF and LF

The tablet supports optional NFC/HF/LF modules with compatibility for 14443A, 14443B, 15693 and 125K protocols. These options can be used for identification, card reading and other data collection applications.

RFID

Optional RFID functionality supports 14443A, 14443B and 15693, as well as 125K low-frequency applications.

Barcode Scanner

1D and 2D scanner modules can be integrated for barcode and QR-code data acquisition. Other customized scanning modules are also available according to project requirements.

Display and Touchscreen

The 12-inch display combines a 1200 × 2000 resolution with 500-nit standard brightness for professional mobile computing. The 10-point capacitive touch panel features 7H hardness and supports multi-touch operation.

The display configuration is suitable for applications where operators need to view industrial software, forms, maps, equipment information or field data while working in variable lighting conditions.

Battery and Power

The built-in 7.6V 10000mAh polymer lithium-ion battery is designed for extended mobile operation. Under the specified test condition, the tablet can provide approximately 10 hours of battery life.

The standard power adapter supports AC100V–240V input with DC12V/4A output. Battery and power configurations can be considered according to the final application and system integration requirements.

Applications

The RT-12C can be configured for a variety of professional application environments, including:

• Medical industry

• Oil & gas

• Artificial intelligence applications

• Intelligent manufacturing

• Precision positioning

• Vehicle applications

• Automation

• Law enforcement

• Outdoor patrol

Its combination of computing performance, wireless communication, positioning, rugged construction and expansion interfaces makes it suitable for mobile industrial terminals, field service systems, vehicle-mounted operations and professional data collection.

Intelligent Manufacturing and Industrial Applications

For intelligent manufacturing applications, the RT-12C can connect with industrial networks, peripherals and control equipment through Ethernet, RS232, USB and other interfaces. Optional wireless communication and positioning functions can support mobile equipment management and field data collection.

Vehicle and Field Applications

The rugged tablet can be used as a mobile computing terminal for vehicle applications, outdoor patrol and field operations. GPS/BeiDou positioning, optional 4G/5G, sunlight-visible display and long battery endurance provide the functions required for mobile working environments.

Medical and Professional Applications

The tablet's high-resolution touchscreen, camera system, wireless connectivity and expandable interfaces make it adaptable to professional medical and service applications. System configurations can be selected according to software, communication and peripheral requirements.

Customization and Configuration

Fushizk Technology Co.,Ltd provides configurable options for professional tablet applications. Depending on project requirements, customers can select processor, memory and storage configurations, operating system, communication modules, biometric modules, RFID/NFC functions, scanner modules and machine color.

Customization can also cover the whole-machine monochrome or dual-color appearance and selected functional modules. This allows system integrators and B2B buyers to develop tablet configurations around specific application requirements.

Reliability and Environmental Performance

The RT-12C is designed for professional environments requiring a combination of rugged protection and computing functionality. Its specified environmental characteristics include:

• Operating temperature: -25°C to 60°C

• Storage temperature: -30°C to 70°C

• Humidity: 95% non-condensing

• Drop resistance: 1.2m on composite wooden floor

• Protective configurations: IP65/IP67 as specified

• Built-in 10000mAh polymer lithium-ion battery

For projects with specific environmental requirements, buyers should confirm the final protection configuration and optional modules before production.

B2B Procurement and Project Support

The RT-12C can be considered for OEM projects, system integration, industrial equipment deployment and professional mobile computing applications. Buyers can specify required CPU, RAM, SSD capacity, operating system, wireless communication, positioning, identification and scanning functions according to the application.

The modular configuration allows the same rugged tablet platform to be adapted to different project requirements without changing the overall product concept.

Software and Technical Resources

Drivers, firmware, manuals and application software can be provided to support device deployment and maintenance. These resources help users configure the tablet, integrate it into existing systems and efficiently manage technical support throughout operation.

FAQ

Q1: What processor does the RT-12C use?
The RT-12C uses Intel Core 12th Generation I5-1235U or I7-1255U processors.

Q2: Which operating systems are supported?
Windows 10 and Windows 11 are supported, with Ubuntu available as an optional system.

Q3: Does the tablet support 4G or 5G?
Yes. Optional 4G/5G telecommunication modules are available.

Q4: Does it support GPS positioning?
Yes. The tablet supports GPS and can also support a domestic BeiDou positioning module.

Q5: What is the battery capacity?
The built-in polymer lithium-ion battery is rated at 7.6V and 10000mAh.

Q6: Can the tablet include a barcode scanner?
Yes. Optional 1D/2D scanner modules and other customized modules are available.

Q7: Can the appearance be customized?
Yes. The machine can be supplied in black or customized with a monochrome or dual-color appearance.

Q8: What industries can use this rugged tablet?
Typical applications include medical, oil & gas, intelligent manufacturing, automation, vehicle applications, law enforcement and outdoor patrol.

Product Summary

The RT-12C 12-inch Windows10/11 Rugged Tablet combines Intel Core 12th Generation processing, a 12-inch 1200 × 2000 touchscreen, 10000mAh battery, multiple communication options and extensive I/O interfaces in a rugged mobile platform. With configurable 4G/5G, GPS, fingerprint, NFC, RFID and scanning modules, it is designed for professional industrial, field and mobile computing applications.
