| Part Number | Part Number | Package | Working Peak Reverse Voltage |
Breakdown Voltage(Min) |
Breakdown Voltage(Max) |
Clamping Voltage |
Reverse Leakage Current |
Peak Pulse Current |
Peak Pulse Power |
| UNI | BI | VRWM(V) | VBR(V) | VBR(V) | VC(V) | IR(µA) | IPP(A) | PPPM(W) | |
| SMAJ5.0 | SMAJ5.0C | SMA(DO-214AC) | 5 | 6.40 | 7.30 | 9.6 | 800 | 41.67 | 400 |
| SMAJ5.0A | SMAJ5.0CA | SMA(DO-214AC) | 5 | 6.40 | 7.00 | 9.2 | 800 | 43.48 | 400 |
| SMAJ6.0 | SMAJ6.0C | SMA(DO-214AC) | 6 | 6.67 | 8.15 | 11.4 | 800 | 35.09 | 400 |
| SMAJ6.0A | SMAJ6.0CA | SMA(DO-214AC) | 6 | 6.67 | 7.37 | 10.3 | 800 | 38.83 | 400 |
| SMAJ6.5 | SMAJ6.5C | SMA(DO-214AC) | 6.5 | 7.22 | 8.82 | 12.3 | 500 | 32.52 | 400 |
| SMAJ6.5A | SMAJ6.5CA | SMA(DO-214AC) | 6.5 | 7.22 | 7.98 | 11.2 | 500 | 35.71 | 400 |
| SMAJ7.0 | SMAJ7.0C | SMA(DO-214AC) | 7 | 7.78 | 9.51 | 13.3 | 200 | 30.08 | 400 |
| SMAJ7.0A | SMAJ7.0CA | SMA(DO-214AC) | 7 | 7.78 | 8.60 | 12.0 | 200 | 33.33 | 400 |
| SMAJ7.5 | SMAJ7.5C | SMA(DO-214AC) | 7.5 | 8.33 | 10.20 | 14.3 | 100 | 27.97 | 400 |
| SMAJ7.5A | SMAJ7.5CA | SMA(DO-214AC) | 7.5 | 8.33 | 9.21 | 12.9 | 100 | 31.01 | 400 |
| SMAJ8.0 | SMAJ8.0C | SMA(DO-214AC) | 8 | 8.89 | 10.90 | 15.0 | 50 | 26.67 | 400 |
| SMAJ8.0A | SMAJ8.0CA | SMA(DO-214AC) | 8 | 8.89 | 9.83 | 13.6 | 50 | 29.41 | 400 |
| SMAJ8.5 | SMAJ8.5C | SMA(DO-214AC) | 8.5 | 9.44 | 11.50 | 15.9 | 10 | 25.16 | 400 |
| SMAJ8.5A | SMAJ8.5CA | SMA(DO-214AC) | 8.5 | 9.44 | 10.40 | 14.4 | 10 | 27.78 | 400 |
| SMAJ9.0 | SMAJ9.0C | SMA(DO-214AC) | 9 | 10.00 | 12.20 | 16.9 | 5 | 23.67 | 400 |
| SMAJ9.0A | SMAJ9.0CA | SMA(DO-214AC) | 9 | 10.00 | 11.10 | 15.4 | 5 | 25.97 | 400 |
| SMAJ10 | SMAJ10C | SMA(DO-214AC) | 10 | 11.10 | 13.60 | 18.8 | 5 | 21.28 | 400 |
| SMAJ10A | SMAJ10CA | SMA(DO-214AC) | 10 | 11.10 | 12.30 | 17.0 | 5 | 23.53 | 400 |
| SMAJ11 | SMAJ11C | SMA(DO-214AC) | 11 | 12.20 | 14.90 | 20.1 | 1 | 19.9 | 400 |
| SMAJ11A | SMAJ11CA | SMA(DO-214AC) | 11 | 12.20 | 13.50 | 18.2 | 1 | 21.98 | 400 |
| SMAJ12 | SMAJ12C | SMA(DO-214AC) | 12 | 13.30 | 16.30 | 22.0 | 1 | 18.18 | 400 |
| SMAJ12A | SMAJ12CA | SMA(DO-214AC) | 12 | 13.30 | 14.70 | 19.9 | 1 | 20.1 | 400 |
| SMAJ13 | SMAJ13C | SMA(DO-214AC) | 13 | 14.40 | 17.60 | 23.8 | 1 | 16.81 | 400 |
| SMAJ13A | SMAJ13CA | SMA(DO-214AC) | 13 | 14.40 | 15.90 | 21.5 | 1 | 18.6 | 400 |
| SMAJ14 | SMAJ14C | SMA(DO-214AC) | 14 | 15.60 | 19.10 | 25.8 | 1 | 15.5 | 400 |
| SMAJ14A | SMAJ14CA | SMA(DO-214AC) | 14 | 15.60 | 17.20 | 23.2 | 1 | 17.24 | 400 |
| SMAJ15 | SMAJ15C | SMA(DO-214AC) | 15 | 16.70 | 20.40 | 26.9 | 1 | 14.87 | 400 |
| SMAJ15A | SMAJ15CA | SMA(DO-214AC) | 15 | 16.70 | 18.50 | 24.4 | 1 | 16.39 | 400 |
| SMAJ16 | SMAJ16C | SMA(DO-214AC) | 16 | 17.80 | 21.80 | 28.8 | 1 | 13.89 | 400 |
| SMAJ16A | SMAJ16CA | SMA(DO-214AC) | 16 | 17.80 | 19.70 | 26.0 | 1 | 15.38 | 400 |
| SMAJ17 | SMAJ17C | SMA(DO-214AC) | 17 | 18.90 | 23.10 | 30.5 | 1 | 13.11 | 400 |
| SMAJ17A | SMAJ17CA | SMA(DO-214AC) | 17 | 18.90 | 20.90 | 27.6 | 1 | 14.49 | 400 |
| SMAJ18 | SMAJ18C | SMA(DO-214AC) | 18 | 20.00 | 24.40 | 32.2 | 1 | 12.42 | 400 |
| SMAJ18A | SMAJ18CA | SMA(DO-214AC) | 18 | 20.00 | 22.10 | 29.2 | 1 | 13.7 | 400 |
| SMAJ19 | SMAJ19C | SMA(DO-214AC) | 19 | 21.13 | 25.76 | 34.0 | 1 | 11.76 | 400 |
| SMAJ19A | SMAJ19CA | SMA(DO-214AC) | 19 | 21.10 | 23.30 | 30.8 | 1 | 13 | 400 |
| SMAJ20 | SMAJ20C | SMA(DO-214AC) | 20 | 22.20 | 27.10 | 35.8 | 1 | 11.17 | 400 |
| SMAJ20A | SMAJ20CA | SMA(DO-214AC) | 20 | 22.20 | 24.50 | 32.4 | 1 | 12.35 | 400 |
| SMAJ22 | SMAJ22C | SMA(DO-214AC) | 22 | 24.40 | 29.80 | 39.4 | 1 | 10.15 | 400 |
| SMAJ22A | SMAJ22CA | SMA(DO-214AC) | 22 | 24.40 | 26.90 | 35.5 | 1 | 11.27 | 400 |
| SMAJ24 | SMAJ24C | SMA(DO-214AC) | 24 | 26.70 | 32.60 | 43.0 | 1 | 9.30 | 400 |
| SMAJ24A | SMAJ24CA | SMA(DO-214AC) | 24 | 26.70 | 29.50 | 38.9 | 1 | 10.28 | 400 |
| SMAJ26 | SMAJ26C | SMA(DO-214AC) | 26 | 28.90 | 35.30 | 46.6 | 1 | 8.58 | 400 |
| SMAJ26A | SMAJ26CA | SMA(DO-214AC) | 26 | 28.90 | 31.90 | 42.1 | 1 | 9.50 | 400 |
| SMAJ28 | SMAJ28C | SMA(DO-214AC) | 28 | 31.10 | 38.00 | 50.0 | 1 | 8.00 | 400 |
| SMAJ28A | SMAJ28CA | SMA(DO-214AC) | 28 | 31.10 | 34.40 | 45.4 | 1 | 8.81 | 400 |
| SMAJ30 | SMAJ30C | SMA(DO-214AC) | 30 | 33.30 | 40.70 | 53.5 | 1 | 7.48 | 400 |
| SMAJ30A | SMAJ30CA | SMA(DO-214AC) | 30 | 33.30 | 36.80 | 48.4 | 1 | 8.26 | 400 |
| SMAJ33 | SMAJ33C | SMA(DO-214AC) | 33 | 36.70 | 44.90 | 59.0 | 1 | 6.78 | 400 |
| SMAJ33A | SMAJ33CA | SMA(DO-214AC) | 33 | 36.70 | 40.60 | 53.3 | 1 | 7.50 | 400 |
| SMAJ36 | SMAJ36C | SMA(DO-214AC) | 36 | 40.00 | 48.90 | 64.3 | 1 | 6.22 | 400 |
| SMAJ36A | SMAJ36CA | SMA(DO-214AC) | 36 | 40.00 | 44.20 | 58.1 | 1 | 6.88 | 400 |
| SMAJ40 | SMAJ40C | SMA(DO-214AC) | 40 | 44.40 | 54.30 | 71.4 | 1 | 5.60 | 400 |
| SMAJ40A | SMAJ40CA | SMA(DO-214AC) | 40 | 44.40 | 49.10 | 64.5 | 1 | 6.20 | 400 |
| SMAJ43 | SMAJ43C | SMA(DO-214AC) | 43 | 47.80 | 58.40 | 76.7 | 1 | 5.22 | 400 |
| SMAJ43A | SMAJ43CA | SMA(DO-214AC) | 43 | 47.80 | 52.80 | 69.4 | 1 | 5.76 | 400 |
| SMAJ45 | SMAJ45C | SMA(DO-214AC) | 45 | 50.00 | 61.10 | 80.3 | 1 | 4.98 | 400 |
| SMAJ45A | SMAJ45CA | SMA(DO-214AC) | 45 | 50.00 | 55.30 | 72.7 | 1 | 5.50 | 400 |
| SMAJ48 | SMAJ48C | SMA(DO-214AC) | 48 | 53.30 | 65.10 | 85.5 | 1 | 4.68 | 400 |
| SMAJ48A | SMAJ48CA | SMA(DO-214AC) | 48 | 53.30 | 58.90 | 77.4 | 1 | 5.17 | 400 |
| SMAJ51 | SMAJ51C | SMA(DO-214AC) | 51 | 56.70 | 69.30 | 91.1 | 1 | 4.39 | 400 |
| SMAJ51A | SMAJ51CA | SMA(DO-214AC) | 51 | 56.70 | 62.70 | 82.4 | 1 | 4.85 | 400 |
| SMAJ54 | SMAJ54C | SMA(DO-214AC) | 54 | 60.00 | 73.30 | 96.3 | 1 | 4.15 | 400 |
| SMAJ54A | SMAJ54CA | SMA(DO-214AC) | 54 | 60.00 | 66.30 | 87.1 | 1 | 4.59 | 400 |
| SMAJ58 | SMAJ58C | SMA(DO-214AC) | 58 | 64.40 | 78.70 | 103 | 1 | 3.88 | 400 |
| SMAJ58A | SMAJ58CA | SMA(DO-214AC) | 58 | 64.40 | 71.20 | 93.6 | 1 | 4.27 | 400 |
| SMAJ60 | SMAJ60C | SMA(DO-214AC) | 60 | 66.70 | 81.50 | 107 | 1 | 3.74 | 400 |
| SMAJ60A | SMAJ60CA | SMA(DO-214AC) | 60 | 66.70 | 73.70 | 96.8 | 1 | 4.13 | 400 |
| SMAJ64 | SMAJ64C | SMA(DO-214AC) | 64 | 71.10 | 86.90 | 114 | 1 | 3.51 | 400 |
| SMAJ64A | SMAJ64CA | SMA(DO-214AC) | 64 | 71.10 | 78.60 | 103 | 1 | 3.88 | 400 |
| SMAJ70 | SMAJ70C | SMA(DO-214AC) | 70 | 77.80 | 95.10 | 125 | 1 | 3.20 | 400 |
| SMAJ70A | SMAJ70CA | SMA(DO-214AC) | 70 | 77.80 | 86.00 | 113 | 1 | 3.54 | 400 |
| SMAJ75 | SMAJ75C | SMA(DO-214AC) | 75 | 83.30 | 102.00 | 134 | 1 | 2.99 | 400 |
| SMAJ75A | SMAJ75CA | SMA(DO-214AC) | 75 | 83.30 | 92.10 | 121 | 1 | 3.31 | 400 |
| SMAJ78 | SMAJ78C | SMA(DO-214AC) | 78 | 86.70 | 106.00 | 139 | 1 | 2.88 | 400 |
| SMAJ78A | SMAJ78CA | SMA(DO-214AC) | 78 | 86.70 | 95.80 | 126 | 1 | 3.17 | 400 |
| SMAJ80 | SMAJ80C | SMA(DO-214AC) | 80 | 88.96 | 108.80 | 143.2 | 1 | 2.79 | 400 |
| SMAJ80A | SMAJ80CA | SMA(DO-214AC) | 80 | 88.80 | 97.60 | 129.6 | 1 | 3.09 | 400 |
| SMAJ85 | SMAJ85C | SMA(DO-214AC) | 85 | 94.40 | 115.00 | 151 | 1 | 2.65 | 400 |
| SMAJ85A | SMAJ85CA | SMA(DO-214AC) | 85 | 94.40 | 104.00 | 137 | 1 | 2.92 | 400 |
| SMAJ90 | SMAJ90C | SMA(DO-214AC) | 90 | 100 | 122.00 | 160 | 1 | 2.50 | 400 |
| SMAJ90A | SMAJ90CA | SMA(DO-214AC) | 90 | 100 | 111 | 146 | 1 | 2.74 | 400 |
| SMAJ100 | SMAJ100C | SMA(DO-214AC) | 100 | 111 | 136 | 179 | 1 | 2.23 | 400 |
| SMAJ100A | SMAJ100CA | SMA(DO-214AC) | 100 | 111 | 123 | 162 | 1 | 2.47 | 400 |
| SMAJ110 | SMAJ110C | SMA(DO-214AC) | 110 | 122 | 149 | 196 | 1 | 2.04 | 400 |
| SMAJ110A | SMAJ110CA | SMA(DO-214AC) | 110 | 122 | 135 | 177 | 1 | 2.26 | 400 |
| SMAJ120 | SMAJ120C | SMA(DO-214AC) | 120 | 133 | 163 | 214 | 1 | 1.87 | 400 |
| SMAJ120A | SMAJ120CA | SMA(DO-214AC) | 120 | 133 | 147 | 193 | 1 | 2.07 | 400 |
| SMAJ130 | SMAJ130C | SMA(DO-214AC) | 130 | 144 | 176 | 231 | 1 | 1.73 | 400 |

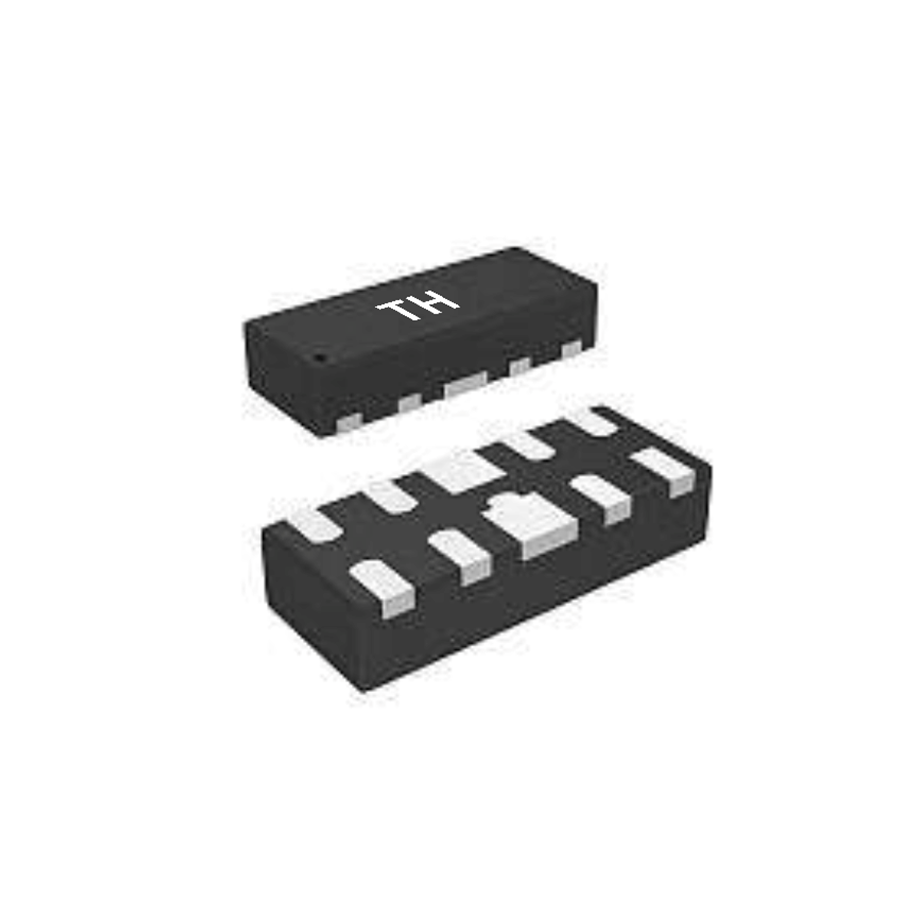

TVS Diode
A voltage protection device based on avalanche breakdown, available in unidirectional or bidirectional types.
