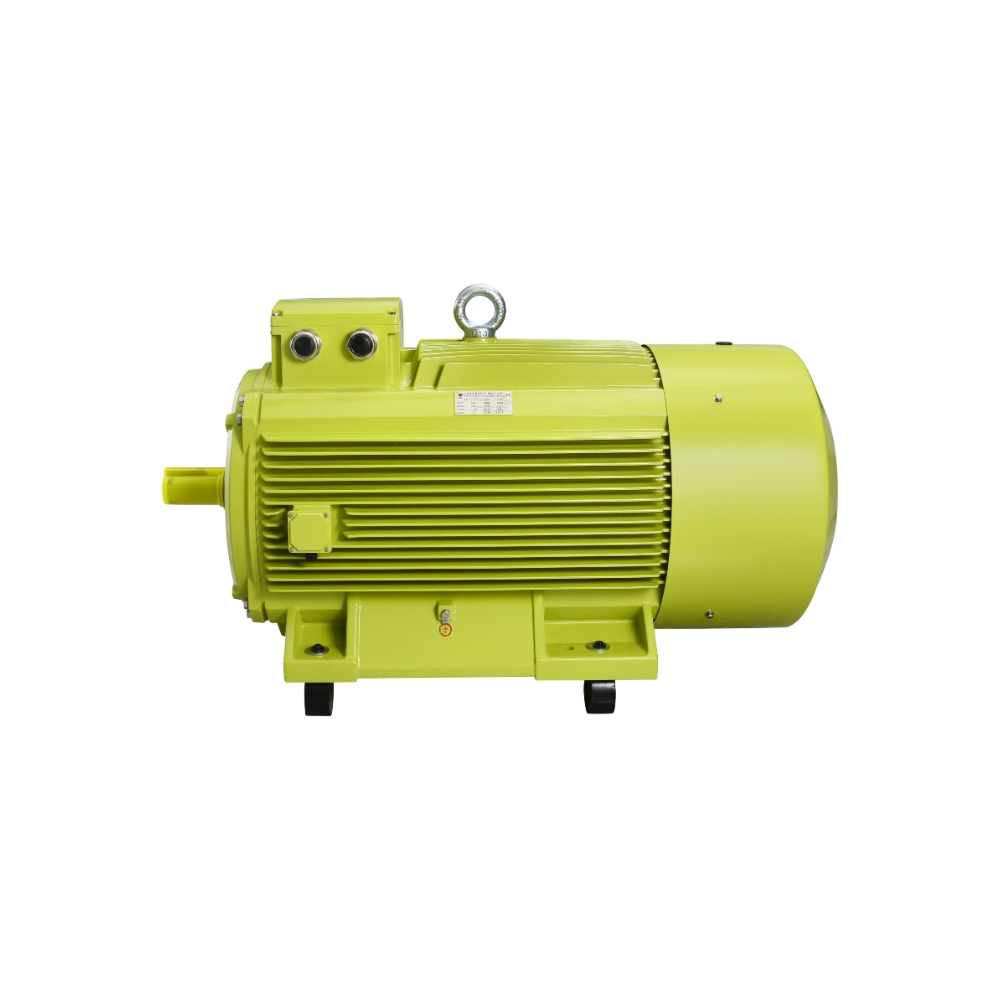

The YE5 Ultra-High Efficiency Three-Phase Asynchronous Motor is designed for industrial applications that require reliable power transmission, high operating efficiency, and long-term performance. Developed by our company, this series of three-phase induction motors is engineered to reduce electrical energy losses while providing dependable drive power for a wide range of industrial equipment.
The YE5 series complies with GB/T 755, Rotating Electrical Machines – Rating and Performance. According to the supplied product specifications, its efficiency values meet the Grade 1 energy efficiency requirements specified in GB 18613-2020 and are aligned with the IE5 efficiency classification referenced in IEC 60034-30.
Available in multiple frame sizes, rated powers, and synchronous speed configurations, YE5 motors can be used to drive pumps, fans, compressors, conveyors, and other transmission machinery. They are also suitable for industrial energy-saving upgrades where improving motor efficiency is an important part of reducing operating costs.
Key Features and Advantages
1. Ultra-High Energy Efficiency
The YE5 series is designed to minimize motor energy losses and improve the conversion of electrical energy into mechanical output. Higher motor efficiency can help reduce the electricity required to deliver the same mechanical power, particularly in equipment that operates for long hours.
For industrial facilities with continuously running pumps, fans, or production machinery, selecting an appropriately sized high-efficiency motor can contribute to long-term energy management objectives.
Actual energy savings depend on the original motor's efficiency, operating load, annual running hours, power supply, and the characteristics of the driven equipment.
2. Reliable Performance and Long Service Life
The motor series features a design intended to support stable operation, low vibration, and reliable mechanical performance. An adequate temperature-rise margin can help support dependable operation under suitable working conditions.
Correct installation, appropriate load selection, proper ventilation, bearing maintenance, and alignment with the driven equipment remain essential to achieving a long service life.
3. Strong Starting Performance
The YE5 series offers starting torque characteristics suitable for a range of industrial drive applications. The supplied technical data lists locked-rotor torque, locked-rotor current, and maximum torque ratios for individual models.
These parameters help engineers evaluate whether a motor can meet the starting and load requirements of the driven machinery. For applications involving high inertia, frequent starts, or demanding starting loads, the specific motor model should be checked against the equipment's torque requirements and electrical supply capacity.
4. Low Vibration and Controlled Noise
Mechanical balance and structural design influence vibration and operating noise. The YE5 series is designed for low-vibration operation, making it suitable for industrial equipment where dependable running conditions are important.
Actual noise and vibration levels depend on the motor rating, installation foundation, coupling alignment, driven equipment, and operating environment. The model-specific data should be used during equipment design and acceptance testing.
5. Multiple Power and Speed Options
The product range covers a broad selection of power ratings and motor speeds. The supplied specifications include models with synchronous speeds of 3000, 1500, 1000, 750, and 600 r/min.
This range allows equipment designers and maintenance teams to select a motor according to the required output, speed, torque, and installation arrangement. Frame size, shaft dimensions, mounting configuration, and electrical requirements should be confirmed before ordering.
Technical Specifications
The following values summarize the ranges represented in the supplied technical data. Individual ratings and performance characteristics vary by model.
| Parameter | Supplied specification |
|---|---|
| Motor type | YE5 three-phase asynchronous motor |
| Rated voltage | Primarily 380 V, with selected models rated at 660 V |
| Rated power range | 0.75–630 kW across the listed models |
| Synchronous speed options | 3000, 1500, 1000, 750, and 600 r/min |
| Efficiency | Model-dependent; listed values extend up to 97.4% |
| Power factor | Model-dependent |
| Starting characteristics | Model-specific locked-rotor torque and current ratios |
| Maximum torque | Model-specific maximum-to-rated torque ratio |
| Noise level | Varies by model and speed |
| Weight | Varies by frame size and rated power |
| Applicable standards | GB/T 755, GB 18613-2020, and IEC 60034-30 as stated in the supplied product information |
Please consult the official model-specific datasheet for final ratings, dimensions, mounting details, insulation class, protection rating, duty type, and other ordering requirements.
Typical Applications
The YE5 ultra-high efficiency motor can be used in a wide range of industrial drive systems.
Water pumps: Suitable for driving industrial water supply pumps, circulation pumps, and other compatible pumping equipment. The motor should be selected according to the pump's power demand, operating point, and starting conditions.
Fans and ventilation systems: Used in industrial ventilation, air movement, and compatible air-handling equipment. Selecting the correct motor rating and speed helps meet airflow requirements while avoiding unnecessary oversizing.
Air compressors: Can drive compatible compressor systems when the motor's power, torque, starting current, and duty characteristics meet the compressor manufacturer's requirements.
Conveyors and material handling: Suitable for conveyor systems and other transmission machinery that require dependable rotating power. Starting torque and load characteristics should be evaluated before selecting a model.
Industrial energy-saving retrofits: The YE5 series can be considered when upgrading compatible older motors, including selected Y, YGM, YGM2, YE2, YE3, and YE4 series installations. A replacement assessment should verify mounting dimensions, shaft compatibility, voltage, speed, load, and control requirements rather than relying on the series designation alone.
Water conservancy and infrastructure projects: High-efficiency motors can support pumping and other mechanical drive applications in water-related infrastructure, provided the selected configuration meets the project's operating and environmental requirements.
YE5 Motor Selection Guide
Choosing the right motor involves more than matching the rated power. Before placing an order, review the following factors:
-
Rated power: Confirm the required mechanical output of the driven equipment and allow for the actual operating load.
-
Voltage and current: Match the motor to the available electrical supply and the requirements of the control system.
-
Speed: Select the appropriate speed according to the pump, fan, compressor, or transmission design.
-
Starting torque: Check whether the motor can start the connected load under expected operating conditions.
-
Installation dimensions: Confirm the frame size, mounting method, shaft dimensions, and available space.
-
Operating environment: Consider ambient temperature, ventilation, dust, humidity, and other site conditions.
-
Operating schedule: Continuous operation, frequent starts, and variable loading can affect motor selection and energy performance.
For retrofit projects, collecting the original motor nameplate information and equipment drawings can help reduce compatibility issues during replacement.
Energy-Saving Benefits in Industrial Operations
Electric motors are major power consumers in many industrial facilities. Improving motor efficiency can therefore be a practical part of a wider energy-saving strategy.
The YE5 series is designed to reduce motor losses compared with less efficient alternatives when operating under comparable conditions. For facilities with long running hours, even a modest efficiency improvement may produce meaningful cumulative energy savings.
A simple estimate of annual energy savings can be made using:
Annual energy savings (kWh) = Difference in input power (kW) × Annual operating hours
The difference in input power should be calculated using the actual mechanical load and the efficiency of the existing and replacement motors. A complete assessment may also consider the pump or fan system, transmission losses, variable-frequency drives, and operating controls.
Motor replacement should be evaluated as part of the overall drive system to ensure that the new motor is correctly matched to the application.
Quality, Reliability, and Technical Support
Selecting a high-efficiency motor is only one part of achieving reliable operation. Correct installation, alignment, electrical protection, cooling, and routine inspection are also important.
Before commissioning, verify the motor's nameplate information, supply voltage, wiring configuration, grounding, mounting security, shaft alignment, and compatibility with the driven equipment. Follow the manufacturer's installation and maintenance instructions, including any requirements for bearings, lubrication, and operating temperature.
For replacement and project applications, provide the motor model, rated power, voltage, speed, mounting requirements, and operating conditions when requesting technical assistance. This information helps confirm the correct configuration and identify any compatibility considerations.
Conclusion
The YE5 Ultra-High Efficiency Three-Phase Asynchronous Motor is designed for industrial users seeking high energy efficiency, reliable drive performance, and a broad range of power and speed options. Its applications include pumps, fans, compressors, conveyors, and industrial energy-saving retrofit projects.
By evaluating rated power, operating speed, starting torque, electrical supply, and installation dimensions, buyers can select a motor that meets the requirements of their equipment and operating environment.
For industrial projects requiring efficient and dependable motor drive solutions, the YE5 series offers a range of configurations for evaluation against specific application needs. Refer to the official technical datasheet to confirm model-level performance and ordering specifications.
