Royal Service Air Conditioning: A Legacy Built on HVAC Precision
For building teams pursuing LEED-aligned outcomes, the selection of a VAV (Variable Air Volume) terminal carries direct consequences for energy performance, indoor air quality, and acoustic comfort. Royal Service Air Conditioning has been active in the HVAC and Air Distribution Systems sector for over 50 years, with headquarters in Los Angeles, USA, and an Asia-Pacific headquarters in Guangzhou, China. This dual-hemisphere footprint enables the company to support building projects across multiple markets that require precise air volume control and documented compliance credentials.
Engineering Standards That Support LEED-Aligned Performance
LEED-oriented projects typically demand measurable proof of airflow accuracy, minimal system leakage, and safe insulation materials — all areas where Royal Service’s technical foundation is directly relevant.
On the airflow side, the company’s terminal units support airflow velocities up to 3,000 fpm (13 m/s) for specific terminal units, enabling accurate performance even in higher-velocity duct sections. Sealing integrity is addressed through casing and damper leakage rates maintained below 1% at test pressures up to 4 in.w.g. (1000 Pa), a specification that limits uncontrolled air loss and supports predictable, energy-conscious operation. Measurement accuracy is reinforced by an airflow sensor amplification factor of ≥ 2.5, which improves the reliability of the airflow data used to modulate dampers.
Material compliance is equally important for LEED documentation. Royal Service’s insulation materials are compliant with NFPA-90A and UL-181 standards, addressing fire safety and duct system integrity requirements that project teams often need to verify during certification review.

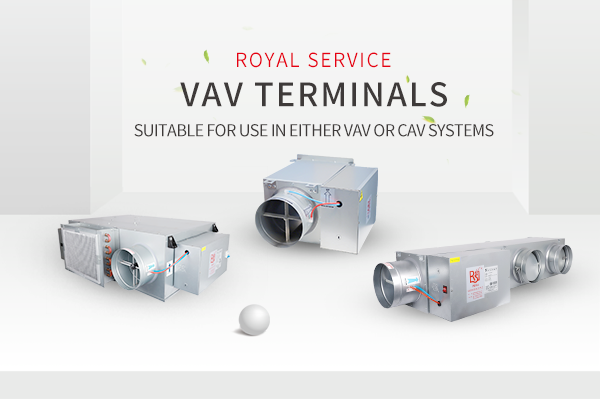

The VAV Terminal Product Line: Six Solutions for Precise Airflow Control
Royal Service offers a VAV Terminals product line described as a set of high-performance air volume control solutions for variable and constant air volume systems, designed for precise airflow management and acoustic comfort. The line includes six distinct products, each addressing a different building scenario.
RSV-TU Single Duct VAV/CAV Terminal The RSV-TU is positioned as a precise volume flow control unit for supply air in VAV systems. It addresses high installation costs, perimeter-zone heating requirements, and noise control needs. Its cost efficiency comes from direct connection of air diffusers to multiple outlet boxes, reducing branch ducting. Heating flexibility is supported through integration with electric heaters or hot-water coils, while high sealing performance keeps air leakage below 1% at 1000 Pa. Construction features include a 22-gauge (0.8 mm) zinc-coated galvanized steel casing, a cross airflow sensor with an amplification factor ≥ 2.5, a damper built from a gasket sandwiched between two 18-gauge (1.2 mm) G.I. sheet metal layers, and 1″ (25 mm) fiberglass internal insulation with BGT cover meeting NFPA-90A and UL-181 standards.
RSV-RF Single Duct VAV Terminals This compact, circular terminal supports supply, return, or exhaust air control and is suited to buildings with limited ceiling space or VAV retrofit needs. It supports airflow velocities up to 3000 fpm (13 m/s) and offers versatile control of volume flow rate, room pressure, or duct pressure. It shares the 22-gauge galvanized steel casing and cross airflow sensor design, with 0.5″ (13 mm) fiberglass internal insulation with BGT cover, and is noted for optimizing room IAQ (Indoor Air Quality) and pressure control — a relevant consideration for occupant comfort metrics tracked in LEED-certified spaces.
RSV-UMP Single Duct VAV Terminals The RSV-UMP integrates a VAV unit with a multi-discharge attenuation plenum, reducing project costs associated with complex on-site installation and sound attenuation. Available in 2-port or 4-port configurations, it can be lined with Bat-matted or Foil covered fiberglass, or ML metal lining, and retains the standard 22-gauge galvanized steel casing and multi-point cross airflow sensor.
RSV-FPS Fan Powered VAV Terminal Designed as a series fan-powered unit, the RSV-FPS thoroughly mixes primary and induced air to maintain a stable air supply regardless of primary air volume, addressing unstable airflow under high turndown conditions. It is available with PSC or ECM motors and supports both Electric Reheat and Hot-Water Reheat. Its casing uses galvanized steel not less than 20 gauge (1.0 mm), with casing leakage not exceeding 1% at 2.8 in.w.g. (700 Pa), and 1″ fiberglass insulation for acoustic performance.
RSV-FPP Parallel Fan Powered VAV Terminal The RSV-FPP places its fan outside the primary airstream, operating intermittently to reduce energy consumption during cooling-only periods while providing supplemental heating through a recirculating air section. It uses a 22-gauge zinc-coated galvanized steel casing, 1″ (25 mm) internal fiberglass insulation with BGT cover, Electric or Hot-Water reheat options, and PSC or ECM motor configurations.
LFPS Low Temperature Fan Powered VAV Terminals Built for primary air temperatures between 39°F (4°C) and 50°F (10°C), the LFPS maintains substantially constant total flow from the diffuser, preserving air distribution quality even under significant reductions in primary air volume. It is compatible with PSC and ECM motors, restricts casing leakage to 1% at 700 Pa, and supports Electric or Hot-Water reheat modules.
Flexible Business Model for Custom LEED Projects
Royal Service’s pricing approach is based on custom enterprise configurations, factoring in inlet size, motor type (PSC/ECM), and reheat options. This configuration-based structure allows project teams to align terminal specifications with the specific airflow, energy, and heating requirements of a given LEED submission. On the delivery side, Royal Service provides hardware installation with options for Pressure-Dependent or Pressure-Independent control devices, giving design teams a choice in control strategy based on project complexity and performance targets.
Why Royal Service Stands Out for LEED-Focused Building Projects
Across its six-product VAV Terminals line, Royal Service consistently pairs documented leakage control, multi-point airflow sensing, and NFPA-90A/UL-181 compliant insulation with configuration flexibility spanning motor type, reheat method, and control philosophy. For teams evaluating high-efficiency VAV terminal options for LEED submissions, this combination of measurable technical specifications and adaptable product configurations offers a documented basis for airflow accuracy, sealing performance, and acoustic comfort — all directly traceable to the company’s published engineering data rather than generalized industry claims.
For more information, visit www.royalservice.com.
