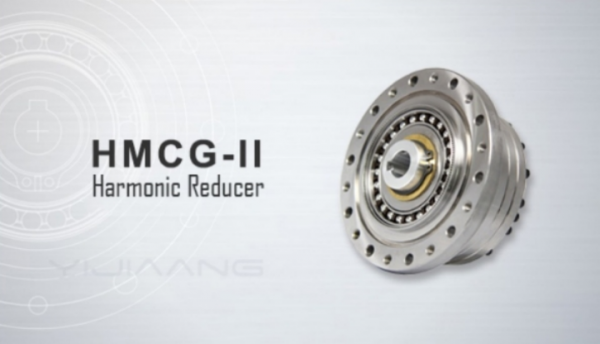

HMCG-14-XX-II-E Product Features
1. Cup-shaped integrated cam structure
2. Compact and simple design
3. No backlash
4. Coaxial input and output
5. Excellent positioning accuracy and rotation accuracy
6. Torque capacity is 30% higher than HMCS series
7. Service life is 43% higher than HMCS series
Reduction Ratio: HMCG-14-50, HMCG-14-80, HMCG-14-100, HMCG-14-120
Model |
Reduction ratio |
Rated torque at input 2000r/min |
Maximum torque allowed for start and stop |
Maximum allowable average load torque |
Instantaneous maximum permissible torque |
Maximum allowable input speed |
Allowable average input speed |
Backlash |
Transmission error(arc sec |
Weight |
Nm |
Nm |
Nm |
Nm |
r/min |
r/min |
≤ |
≤ |
kg |
||
14 |
50 |
7 |
23 |
9 |
46 |
8000 |
3500 |
20 |
90 |
0.52 |
80 |
10 |
30 |
14 |
51 |
20 |
90 |
||||
100 |
10 |
36 |
14 |
70 |
10 |
90 |
||||
120 |
10 |
36 |
14 |
70 |
10 |
55 |
||||
17 |
50 |
21 |
44 |
34 |
91 |
7000 |
3500 |
20 |
90 |
0.68 |
80 |
29 |
56 |
35 |
113 |
20 |
90 |
||||
100 |
31 |
70 |
51 |
143 |
10 |
90 |
||||
120 |
31 |
70 |
51 |
112 |
10 |
90 |
||||
20 |
50 |
33 |
73 |
44 |
127 |
6000 |
3500 |
20 |
60 |
0.98 |
80 |
44 |
96 |
61 |
165 |
20 |
60 |
||||
100 |
52 |
107 |
64 |
191 |
10 |
60 |
||||
120 |
52 |
113 |
64 |
191 |
10 |
60 |
||||
160 |
52 |
120 |
64 |
191 |
10 |
60 |
||||
25 |
50 |
51 |
127 |
72 |
242 |
5500 |
3500 |
20 |
60 |
1.5 |
80 |
82 |
178 |
113 |
332 |
20 |
60 |
||||
100 |
87 |
204 |
140 |
369 |
10 |
60 |
||||
120 |
87 |
217 |
140 |
395 |
10 |
60 |
||||
160 |
87 |
229 |
140 |
408 |
10 |
60 |
||||
32 |
50 |
99 |
281 |
140 |
497 |
4500 |
3500 |
20 |
60 |
3.22 |
80 |
153 |
395 |
217 |
738 |
10 |
60 |
||||
100 |
178 |
433 |
281 |
841 |
10 |
60 |
||||
120 |
178 |
459 |
281 |
892 |
10 |
60 |
||||
160 |
178 |
484 |
281 |
892 |
10 |
60 |
||||
40 |
50 |
178 |
523 |
255 |
892 |
4000 |
3000 |
10 |
60 |
5.02 |
80 |
268 |
675 |
369 |
1270 |
10 |
60 |
||||
100 |
345 |
738 |
484 |
1400 |
10 |
60 |
||||
120 |
382 |
802 |
586 |
1530 |
10 |
60 |
||||
160 |
382 |
841 |
586 |
1530 |
10 |
60 |
