Product Introduction

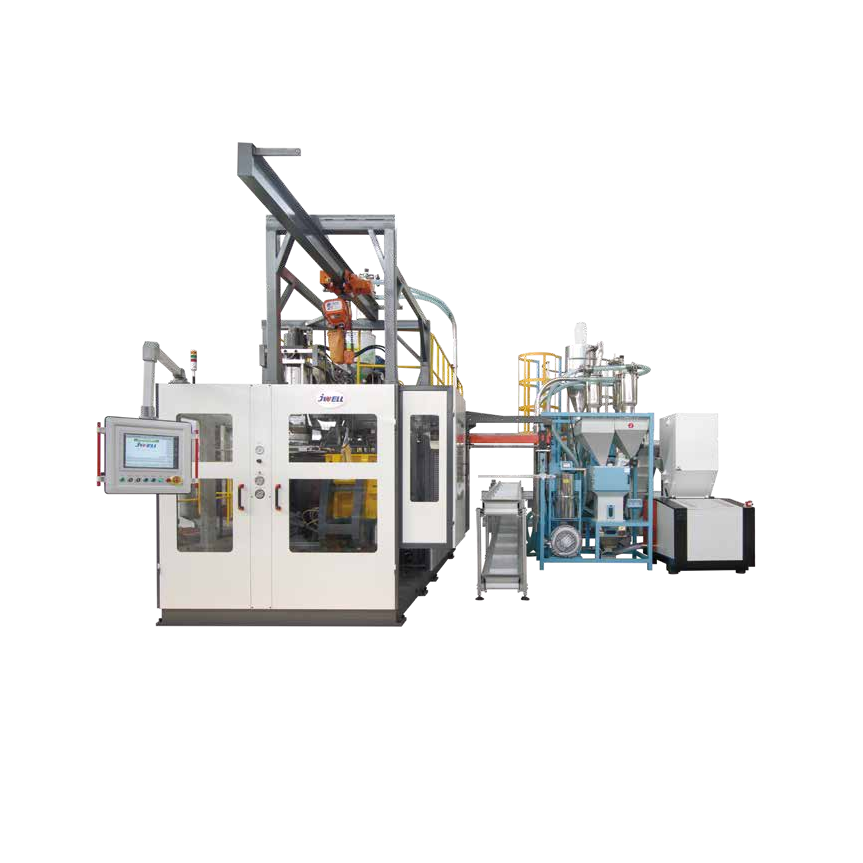

The accumulating blow molding machine for automotive plastic parts is designed for efficient production of medium to large hollow plastic components used in automotive manufacturing. With a high-output extrusion unit, accumulator die head, flexible tooling configuration, and optional co-extrusion capability, the machine provides a practical solution for producing complex automotive plastic products with stable forming performance.
Its extrusion section can be configured with screws, die core rods, and flow channels according to the rheological characteristics of different plastics. This helps maintain consistent plasticization and material output during continuous production. The accumulator die head also supports convenient material and color changes, slag discharge, cleaning, and maintenance, helping reduce unnecessary downtime between production tasks.
High-Output Extrusion for Automotive Components
Automotive plastic parts often require stable material distribution, controlled wall thickness, and repeatable forming conditions. The high-output extrusion configuration is designed to deliver the material volume required for products such as car urea tanks, tool boxes, automotive seats, air ducts, flow boards, bumpers, and spoilers.
The accumulator head stores and delivers the required quantity of molten plastic before the blowing stage. This production method is particularly suitable for larger hollow components where a stable material charge is essential. By matching the extrusion configuration with the selected resin and product structure, manufacturers can achieve more consistent processing while maintaining production efficiency.
Flexible Clamping and Mold Configuration
Different automotive components require different mold dimensions and structural arrangements. The clamping unit provides stable mold movement and evenly distributed clamping pressure, helping maintain consistent mold alignment throughout the production cycle.
The platen hole arrangement is designed to accommodate different mold configurations, while the platen type and size can be customized according to the finished product dimensions. This flexibility allows the same equipment platform to support a broader range of automotive plastic parts without limiting production to one fixed mold format.
Blow Pin Design for Efficient Cooling
The blow pin unit plays an important role in the forming and cooling process of hollow automotive components. An optimized blow pin configuration supports effective air circulation and cyclic blowing, helping remove heat from the newly formed plastic structure.
Depending on production requirements, the blow needle assembly can be configured from single-head to multi-head arrangements. This provides additional flexibility when manufacturers need to adapt the automotive blow molding machine to different product structures or production volumes.
Intelligent Control and Easy Operation
Stable production also depends on accurate control of machine movements and processing parameters. The electrical section uses a Mitsubishi PLC with an HMI interface, supporting both Chinese and English operation for international production environments.
Operators can use the touchscreen interface to configure and modify parameters, review production data, monitor operating conditions, and perform fault diagnosis. This centralized control approach simplifies daily operation while giving production teams better visibility over machine performance.
Servo Hydraulic Control and Energy Efficiency
Hydraulic performance directly affects mold movement, clamping, and other machine actions. The hydraulic section uses servo control to regulate actuator movement with fast response and precise operation. High-quality hydraulic components contribute to stable machine performance during repeated production cycles.
An optional servo hydraulic control configuration is available for manufacturers seeking improved energy management. Under suitable operating conditions, this configuration can provide approximately 50% energy savings, helping reduce operating costs during extended production schedules.
Optional Co-Extrusion and Auxiliary Functions
Automotive applications can involve different material structures and functional requirements. A double-layer co-extrusion option is available for products requiring multiple material layers. This expands processing flexibility when a single material structure cannot provide the desired combination of performance characteristics.
Additional optional functions include bottom sealing, product ejection, core pulling, and a single-station hydraulic screen changer. The screen-changing configuration can be selected according to the raw material and processing conditions, providing greater adaptability for different plastics and production requirements.
Automotive Applications
This automotive plastic parts blow molding machine can be configured for a variety of hollow and formed components, including:
| Application | Production focus |
|---|---|
| Car urea tanks | Hollow container forming and stable wall distribution |
| Automotive tool boxes | Flexible mold configuration and repeatable production |
| Automotive seats | Large formed plastic structures |
| Auto air ducts | Hollow duct forming and controlled blowing |
| Flow boards | Product geometry and material distribution |
| Bumpers | Large mold accommodation and stable clamping |
| Car spoilers | Flexible tooling and efficient cycle production |
Production Flexibility for Different Materials
Material behavior can vary according to resin type, melt characteristics, and processing conditions. The extrusion section can therefore be adapted through customized screw and flow channel designs. A hydraulic screen changer can also be selected when material conditions require additional filtration during extrusion.
This configuration gives manufacturers greater flexibility when processing different plastic materials for automotive components. Instead of relying on a single fixed extrusion arrangement, the machine can be configured around the material characteristics and final product requirements.
Why Choose JWELL
JWELL combines extrusion technology, blow molding expertise, precision manufacturing, and equipment integration to support overseas automotive plastic component manufacturers. The equipment can be configured according to product dimensions, mold requirements, material characteristics, output targets, and automation needs.
From the extrusion unit and accumulator head to clamping, blowing, electrical control, and hydraulic operation, each section contributes to overall production stability. The availability of optional ejection, core pulling, co-extrusion, screen changing, and servo hydraulic functions also allows manufacturers to select a configuration suited to their actual production process.
For automotive suppliers looking for a flexible accumulating blow molding machine for automotive plastic parts, JWELL provides equipment designed around practical production requirements rather than a one-size-fits-all configuration.
