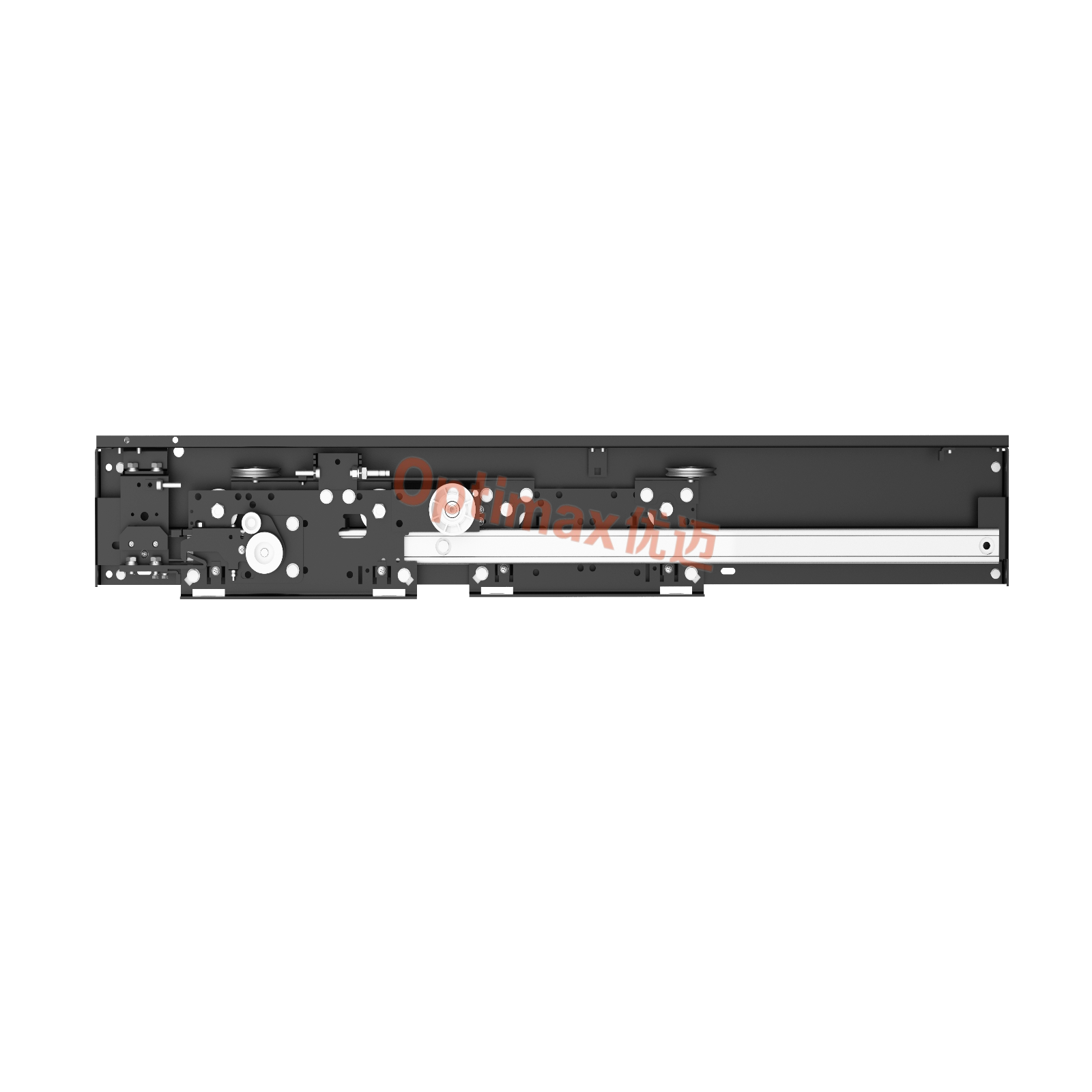

LD-2S96A-O Side Open Landing Door System

The LD-2S96A-O Side Open Landing Door System features a robust 96-mm sill design,it guarantees structural strength and stability,ensuring smooth, safe and quiet operation for passenger entry and exit.

Compare

Description
Reviews (0)

https://www.xizi-ec.com/LD-2S96A-O-Side-Open-Landing-Door-System-with-96-sill.html

Opening type：Side Open Two Panel
Self-closing Type：Heavy hammer autistic
Sill Width：96mm
Hall Door Space：120mm
Speed: Maximum 2m/s
Match The Door Panel Material: Steel Door
OP（mm）：700-1800
OPH（mm）：2000-2600

This product is designed, tested and manufactured in accordance with higher standards than conventional passengers elevators. Matching door panel thickness 1.2mm, optional 1.5mm. It has strong adaptability and matches various door operators and assembly line door panels of various manufacturers in the market. It has the advantages of compact structure, easy installation and debugging. The vulnerable parts are removable for convenient maintenance.

synchronous side opening landing door system

Data Sheet Unit：mm

OP(Clear Opening Width)	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350	1400	1450	1500	1550	1600	1650	1700	1750	1800
L1=3OP/2+188	1238	1313	1388	1463	1538	1613	1688	1763	1838	1913	1988	2063	2138	2213	2288	2363	2438	2513	2588	2663	2738	2813	2888
OPH	2000~2600
