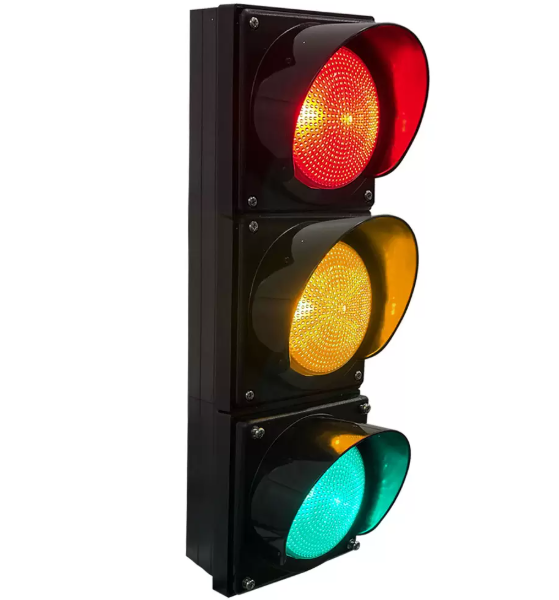

High Flux Red/Yellow/Green Full Ball Traffic Light

The High Flux Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly.

Description
Reviews (0)

The High Flux Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of a large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to a wide range of traffic signal control intersections.

Product Introduction:

Functional Features

Three-layer optical processing – Eliminating glare and reducing light pollution

The high flux full ball traffic light adopts triple optical processing technologies including secondary lens, Fresnel lens and optical mask to achieve uniform surface lighting and output light patterns that comply with international standards. It effectively eliminates glare caused by direct emission from conventional point light sources, thereby significantly mitigating light pollution.

Three core technologies – Effectively extending service life

Through the integrated application of external heat dissipation technology to improve heat dissipation efficiency, wide-voltage and high-surge-protection (AC 90–264V / 4000V) constant-current power supply technology to ensure stable system operation, and large-sized LED chips featuring low light attenuation and high luminous efficiency, these three core technologies collectively ensure the product's exceptional reliability and an extended service life.

– Technical Parameters

Product Model	JD100-3-FM35	JD200-3-FM35	JD300-3-FM35
Light-Emitting Surface (LES) Size	100mm	200mm	300mm
Housing Material	Polycarbonate housing	Polycarbonate housing	Polycarbonate housing
Mask Color	Coloured	Coloured	Coloured
Mask Shape	Arc-shaped	Arc-shaped	Arc-shaped
Operating Voltage / Frequency	AC85~264V/47-63Hz	AC85~264V/47-63Hz	AC85~264V/47-63Hz
LED Quantity	R/Y/G: 1pcs	R/Y/G: 2pcs	R/Y/G: 4pcs
Lamp Power Consumption	Red full ball ≤ 3 W Yellow full ball ≤ 3 W Green full ball ≤ 3 W	Red full ball ≤ 8 W Yellow full ball ≤ 10 W Green full ball ≤ 12 W	Red full ball ≤ 10 W Yellow full ball ≤ 13 W Green full ball ≤ 15 W
Luminous Intensity	110cd~200cd	230cd~350cd	400cd~1000cd
LED Wavelength	Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm	Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm	Red: 616 – 628 nm Yellow: 589 – 592 nm Green: 500 – 510 nm
LED Lifespan	≥100,000 hours	≥100,000 hours	≥100,000 hours
Insulation Resistance	＞2MΩ		＞2MΩ
Operating Temperature	-40℃ to +80℃	-40℃ to +80℃	-40℃ to +80℃
Relative Humidity	≤97%RH	≤97%RH	≤97%RH
Protection Grade	IP55	IP55	IP55
Visual Distance	≥300m	≥300m	≥300m
Packaging Specifications	1 piece per box, Size: 48 × 17 × 19 cm, Weight: 3.1 ± 0.5 KG	1 piece per box, Size: 95 × 29 × 23 cm, Weight: 7.9 ± 0.5 KG	1 piece per box, Size: 112 × 39 × 28 cm, Weight: 13.5 ± 0.5 KG
