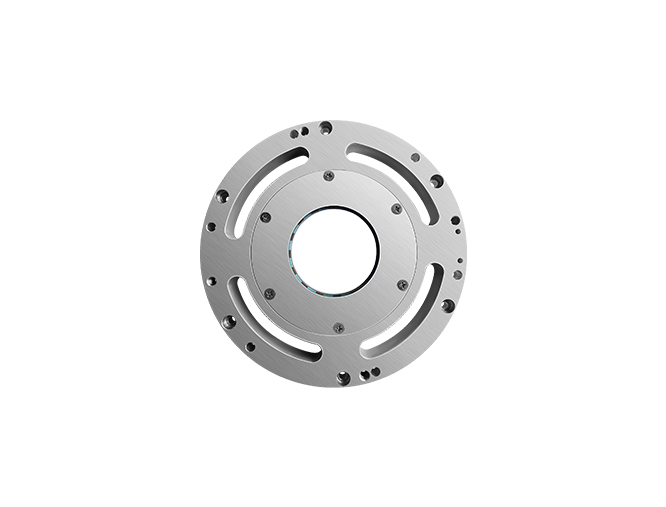

Inductive Sensor

Accurate displacement measurement is essential in many industrial systems, particularly in applications involving high-speed rotating machinery, precision equipment, and demanding operating environments. An inductive sensor provides a reliable solution for detecting small positional changes and monitoring mechanical movement with high precision.

Designed for industrial measurement requirements, this high-performance inductive sensor combines micrometer-level resolution, excellent frequency response, and outstanding temperature stability. With a measurement range of 0–1 mm and the ability to operate at temperatures up to 220°C, it is suitable for applications where conventional measurement devices may struggle to maintain consistent performance.

High Measurement Accuracy and Micrometer-Level Resolution

Precision is one of the most important factors when selecting an industrial displacement sensor. Even minor measurement deviations can affect equipment monitoring, mechanical adjustment, and overall system performance.

This inductive sensor offers an accuracy of 1 μm and a resolution of 1 μm, enabling it to detect very small displacement changes. Its 0–1 mm measurement range makes it suitable for applications requiring precise monitoring within a relatively narrow measurement distance.

The sensor also features adjustable sensitivity of 20 V/mm, allowing users to configure the output characteristics according to specific measurement requirements.

With linear stability of ≤1% FS, it provides consistent measurement performance for precision industrial monitoring tasks.

Excellent Frequency Response for High-Speed Equipment

In rotating machinery and other dynamic industrial applications, measurement equipment must respond quickly to changes in mechanical position.

Featuring a frequency response of 4.7 kHz, this high-precision inductive sensor is designed to capture rapid displacement variations. It supports rotational speed monitoring applications with a speed range of up to 100,000 rpm, making it suitable for high-speed equipment testing and condition monitoring.

The combination of fast response and high measurement resolution helps engineers observe mechanical movement more effectively and obtain useful data for equipment performance evaluation.

Stable Operation in High-Temperature Environments

Temperature fluctuations can influence sensor sensitivity, measurement accuracy, and long-term operating stability. This becomes particularly important when sensors are installed near high-temperature machinery or inside industrial equipment with limited cooling conditions.

This inductive sensor supports an operating temperature range from -10°C to +220°C, providing flexibility for demanding thermal environments.

Its temperature stability is ≤0.1% FSO/°C, helping minimize measurement deviations caused by temperature changes.

In addition, its measurement performance is designed to remain unaffected by common environmental factors such as oil, dust, temperature fluctuations, and pressure changes. These characteristics make it a practical option for industrial applications where stable measurement is required under challenging operating conditions.

Electrical Output and System Integration

Compatibility with existing measurement and control systems is another important consideration when selecting an industrial sensor.

This model operates with a 24 VDC power supply and provides a linear output voltage range of -10 V to +10 V. Its DB9 electrical interface supports connection with compatible measurement equipment and signal processing systems.

The adjustable sensitivity also offers additional flexibility when configuring the sensor for different testing and monitoring setups.

Key electrical and measurement specifications include:

• Measurement Range: 0–1 mm

• Accuracy: 1 μm

• Resolution: 1 μm

• Speed Range: 0–100,000 rpm

• Linear Stability: ≤1% FS

• Temperature Stability: ≤0.1% FSO/°C

• Sensitivity: 20 V/mm, adjustable

• Frequency Response: 4.7 kHz

• Supply Voltage: 24 VDC

• Output Voltage: -10 V to +10 V

• Operating Temperature: -10°C to +220°C

• Electrical Interface: DB9

Industrial Applications of Inductive Displacement Sensors

High-precision inductive sensors are widely used in applications where accurate non-contact displacement measurement and reliable signal acquisition are important.

Potential applications include:

• Rotating Machinery Monitoring: Measuring shaft displacement and observing mechanical movement in high-speed rotating equipment.

• Industrial Equipment Testing: Supporting precision displacement measurement during equipment performance evaluation.

• Mechanical Condition Monitoring: Providing measurement data for analyzing changes in mechanical positioning and movement.

• High-Temperature Equipment: Monitoring displacement in environments where elevated operating temperatures place additional demands on sensor stability.

• Precision Automation: Supporting measurement and feedback requirements in industrial systems that require accurate positional detection.

For engineers and equipment manufacturers, selecting a sensor with suitable accuracy, response speed, and environmental adaptability can help improve measurement reliability and testing efficiency.

Choosing the Right Inductive Sensor for Industrial Measurement

Different industrial measurement tasks require different sensor characteristics. Before selecting an inductive displacement sensor, users should evaluate the required measurement range, resolution, operating temperature, response frequency, and electrical compatibility.

For high-speed machinery, frequency response and measurement stability are particularly important. In high-temperature applications, the sensor's temperature rating and thermal stability should also be carefully considered.

With its 1 μm resolution, 4.7 kHz frequency response, and operating temperature capability of up to 220°C, this inductive sensor offers a combination of precision and environmental adaptability for demanding industrial measurement applications.

Choosing an appropriate sensor based on actual operating conditions helps establish a more reliable measurement system and supports accurate industrial equipment monitoring.
